Products / Substation Transformers
Substation & Power Transformers
Medium- and high-voltage units, built to project spec

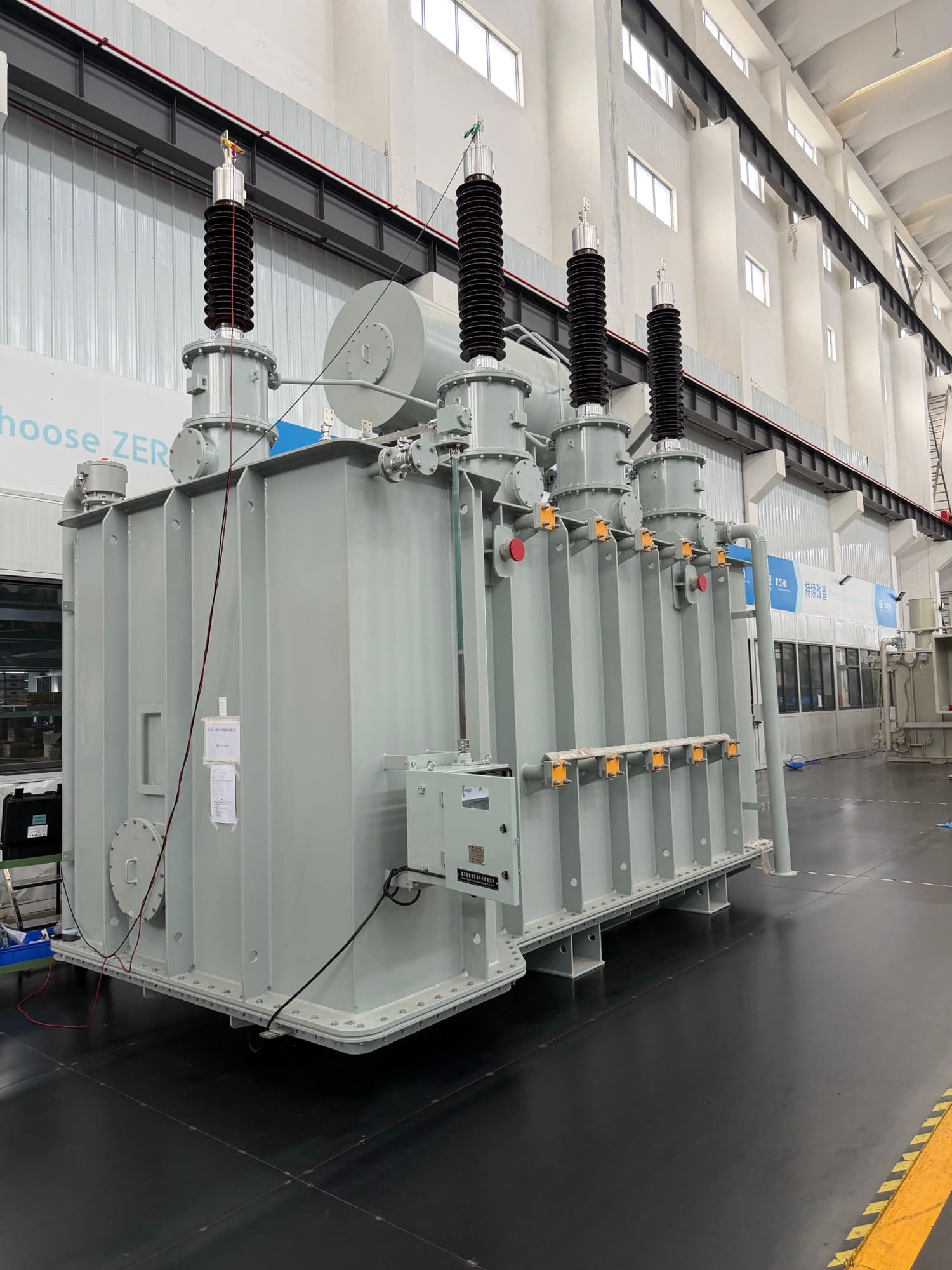

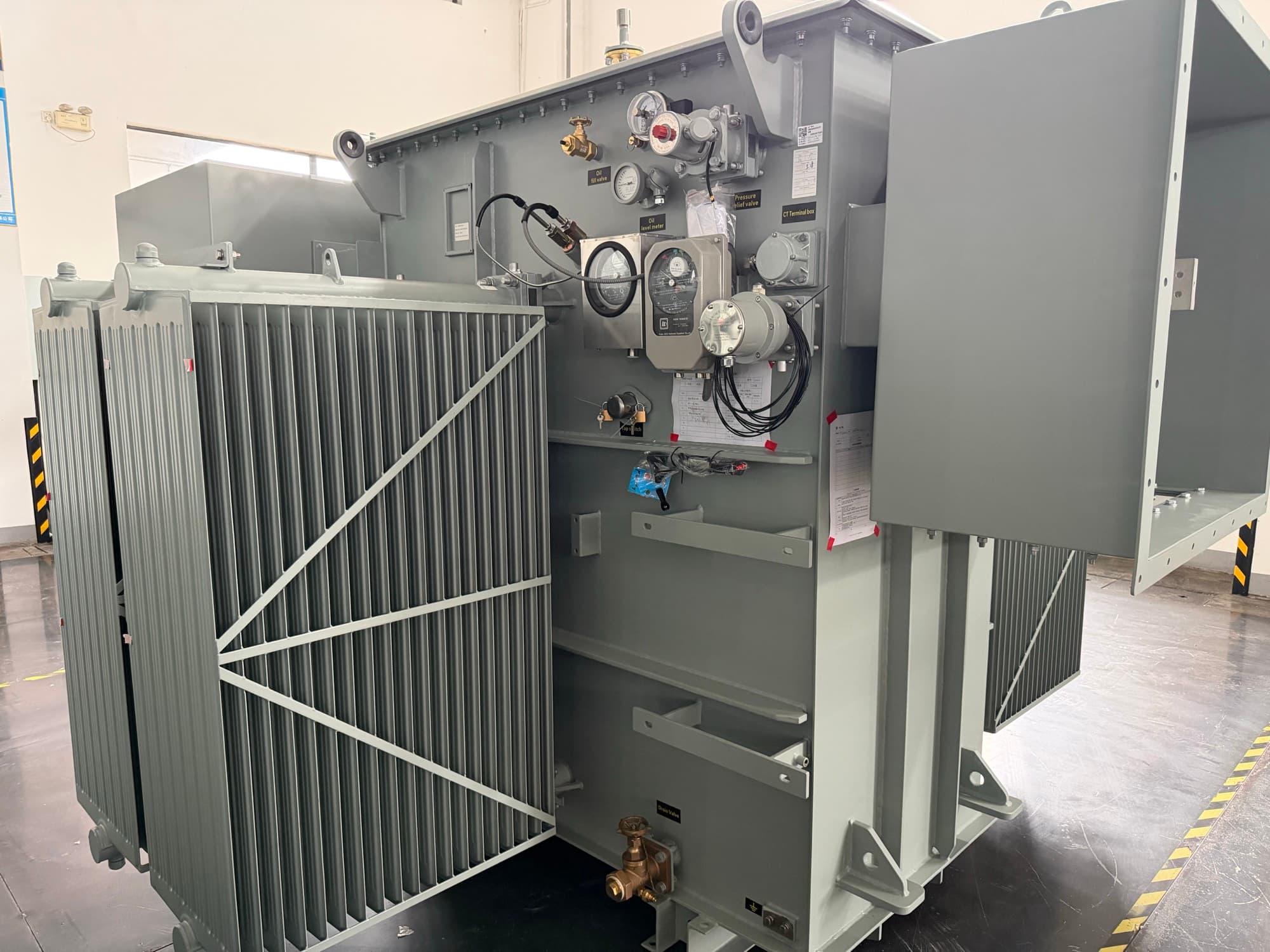

Made-to-order liquid-filled substation and power transformers for utility interconnection, large industrial loads, and multi-megawatt data-center sites.
Each unit is engineered to the project's specification (voltage class, impedance, taps or on-load tap changer, accessories, and losses) and passes a full routine-test program in a CNAS-accredited transformer test station before it ships.
Technical range
| Type | Liquid-immersed, two-winding or three-winding |
|---|---|
| Capacity | Project-specific; typical range 2 – 60 MVA |
| Voltage class | Up to 110 kV class (confirm at engineering review) |
| Cooling | ONAN / ONAF |
| Tap control | De-energized taps or on-load tap changer (OLTC) |
| Fluid | Mineral oil or less-flammable vegetable oil |
| Accessories | Conservator, Buchholz relay, gauges, monitoring per spec |
Capability figures are representative; every substation unit is quoted against your written specification.
Standard features
- ■Engineering review of your one-line and spec sheet before quotation
- ■Routine tests per IEEE / IEC in a CNAS-accredited test station
- ■Partial-discharge shielded test room for MV/HV units
- ■Factory acceptance test (FAT) can be witnessed remotely
Standards & certification
- IEEE C57 series or IEC 60076, per project
- CNAS-accredited routine testing
In production
Need pricing on substation transformers?
Tell us kVA, voltages, quantity, and timeline. We come back with unit pricing, lead time, and freight within one business day.
